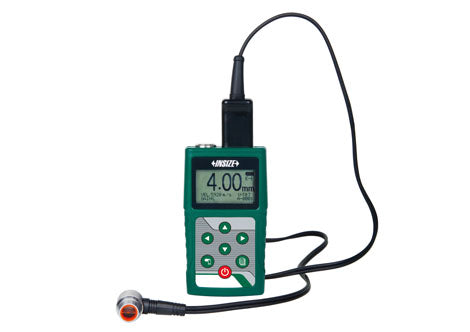

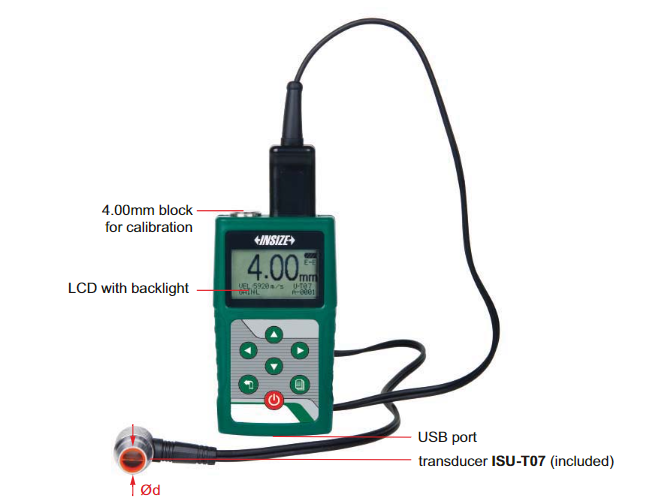

Ultrasonic Thickness Gage (Through Coating) - ISU-300D

Save 25%

Price:
Rs. 137,665 Rs. 183,095

Tax included Shipping calculated at checkout

Description

Features:-

  • Two measuring modes, Echo-Echo (E-E) and Transmit-Echo (T-E):
    -E-E is applicable for non-metallic coating (such as paint, plastic resin, etc.) on metal substrates, can penetrate coating and measure the thickness of substrates
    -T-E is to measure the thickness of material without coating, such as metal, plastic, glass, nylon, resin, ceramics, ice, etc.
  • Tolerance measurement
  • Average calculation of maximum 9 readings
  • Data can be input to Excel and Word as keyboard signal
  • Supplied With Manufacturer Inspection Certificate
Code ISU-300D
Measuring Range E-E mode: coating thickness 0~1mm, substrate thickness gage 4~25mm
T-E mode: substrate thickness 1.5~200mm
Resolution 0.01mm (Range<100mm)
0.1mm (range >100mm)
Repeatability 0.3mm (range<100mm)
0.1mm (range>100mm)
Accuracy

 +0.04mm (range<10mm)
 +(0.04+H/1000)mm (range10~100mm)
 +H/333mm (range>100mm)
H is the thickness to be measured in mm)

Velocity 1000~9999m/s
Power supply 2x1.5V AAA batteries
Dimension 116x64x27mm
Weight 220g
