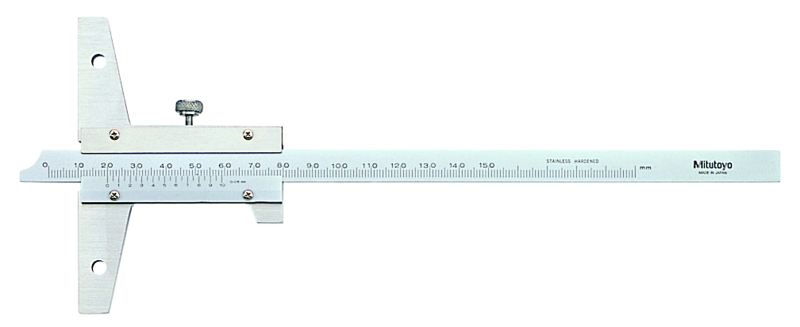

Vernier Depth Gauge - 527

Save 50%

Size: 527-121 (0-150MM)
Price:
Rs. 5,899 Rs. 11,800

Tax included Shipping calculated at checkout

Description

Features:-

  • Base and measuring faces are hardened and micro-lapped.
  • Made of hardened stainless steel.
  • Optional wider extension bases are available. (up to 450mm range models)





SPECIFICATIONS:-

TITLE CODE RANGE LEAST COUNT ACCURACY
Vernier Depth Gage
527-121 0-150mm 0.02MM ±0.03mm
527-122 0-200mm 0.02MM ±0.03mm
527-123 0-300mm 0.02MM ±0.04mm


TECHNICAL DATA:-

Accuracy:
Refer to the list of specifications
Graduation:
0.02mm



Metric
Range Order No. Vernier reading Accuracy Base (WxT) Remarks
0-150mm 527-121 0.02mm ±0.03mm 100x6.5mm -
0-200mm 527-122 0.02mm ±0.03mm 100x6.5mm -
0-300mm 527-123 0.02mm ±0.04mm 100x6.5mm -
