Vibration Meter - 0022-VM20

Save 25%

Size: 0022-VM20
Price:
Rs. 36,180 Rs. 48,119

Tax included Shipping calculated at checkout

Description

Features:-

  • Can measure vibration frequency
  • Can measure virtual value/peak value/peak-peak value of acceleration, velocity and displacement such as motors, pumps, fans, household appliances, compressors, smoke machines, generators, gearboxes, etc.
  • Software is included: on-line monitoring, data storage
    Code 0022-VM20

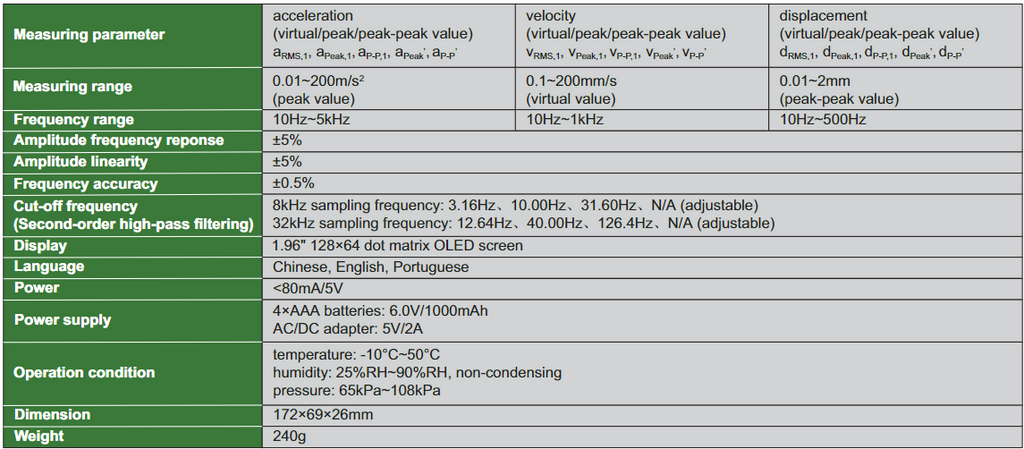

    Measuring parameter Acceleration (virtual/peak/peak-peak-value) aRMS,1` aPeak,1`ap-p,1` aPeak, ap-p Velocity (Virtual/peak/peak-peak value) VRMS,1`Vpeak,1` Vp-p.1`Vpeak`, Vp-p`

    Displacement (Virtual/peak/peak peak value)
    dRMS,1`Vpeak,1` Vp-p.1`Vpeak`, Vp-p`

    Measuring Range 0.01~200m/s2 (peak value) 0.1~200mm/s (virtual value) 0.01~2mm (peak-peak value)
    Frequency range 10Hz~5kHz 10Hz~1kHz 10Hz~500Hz
    Amplitude frequency response 5%
    amplitude linearity 5%
    Frequency accuracy 0.50%
    Cut-off frequency (second-order high-pass filtering) 8kHz sampling frequency:3.16Hz, 10.00Hz, 31.60Hz, N/A (adjustable) 32kHz sampling frequency: 12.64Hz, 40.00Hz, 126.4Hz, N/A (adjustable)
    Display 1.96" 128x64 dot matrix OLED screen
    Language Chinese, english, portuguese
    Power <80mA/5V
    Power supply 4xAAA batteries: 6.0V1000mAh AC/DC adapter:5V/2A
    Operation condition Temperture: -10°C~50° humidity: 25%RH~90%, non-condensing pressure: 65kPa~108kPa
    Dimension  172x69x26mm
    Weight 240g
