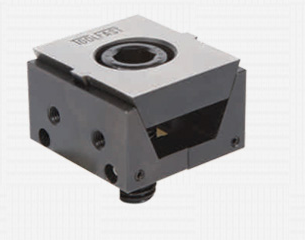

Wedge Clamps - TWC - P Series - Plain Hardened Jaws With Tapped Holes : TWC

Save 27%

Size: TWC-8P
Price:
Rs. 2,699 Rs. 3,698

Tax included Shipping calculated at checkout

Description

  • These have plain hardened jaws added two tapped holes for attaching additional jaw inserts if need be.

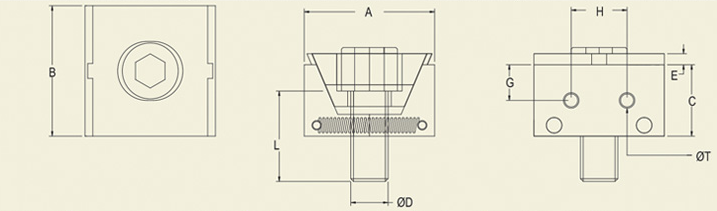

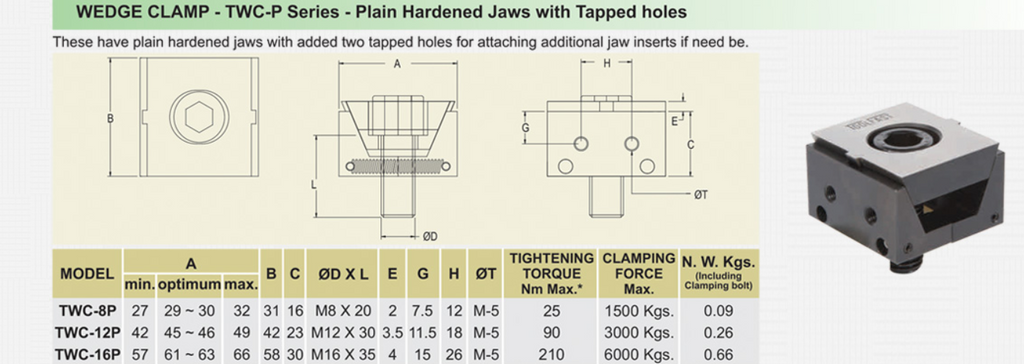

SPECIFICATIONS
Model TWC-8P TWC-12P TWC-16P
A - Min 27 42 57
A -optimum 29〜 30 45〜 56 61〜 63
A-max. 32 49 66
B 31 42 58
C 16 23 30
øD X L M8 x 20 M12 x 30 M16 x 35
E 2 3.5 4
G 7.5 11.5 15
H 12 18 26
øT M-5 M-5 M-5
Tightening Torque Nm Max*
25 90 210
Clamping force max 1500 Kgs 3000 kgs 6000 Kgs
N.W. Kgs. 0.09 0.26 0.66
