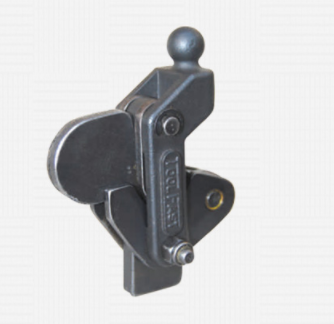

Heavy Duty Weldable Toggle Clamp - Modular Design : WTC

Save 27%

Variant: WTC-100
Price:
Rs. 650 Rs. 891

Tax included Shipping calculated at checkout

Description

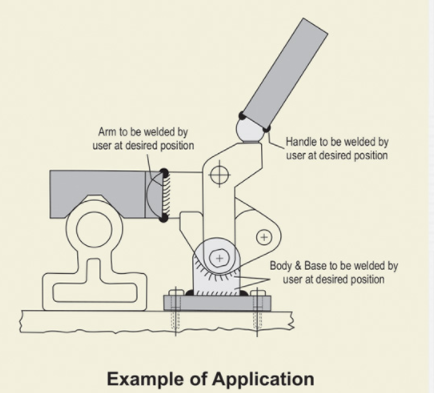

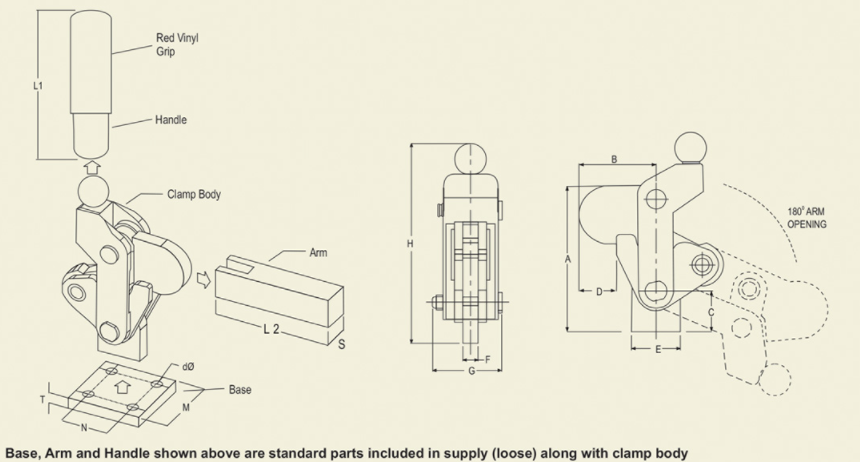

These are modular weldable clamps that allow designer complete flexibility to position the base, clamp arm, and handle and weld them in any desired position to suit the application. The base, arm, and pipe handle are supplied along with the clamp separately, to be welded by the user before use. The main body is made of accurately machined components having hardened and ground pivot pins and bushes.

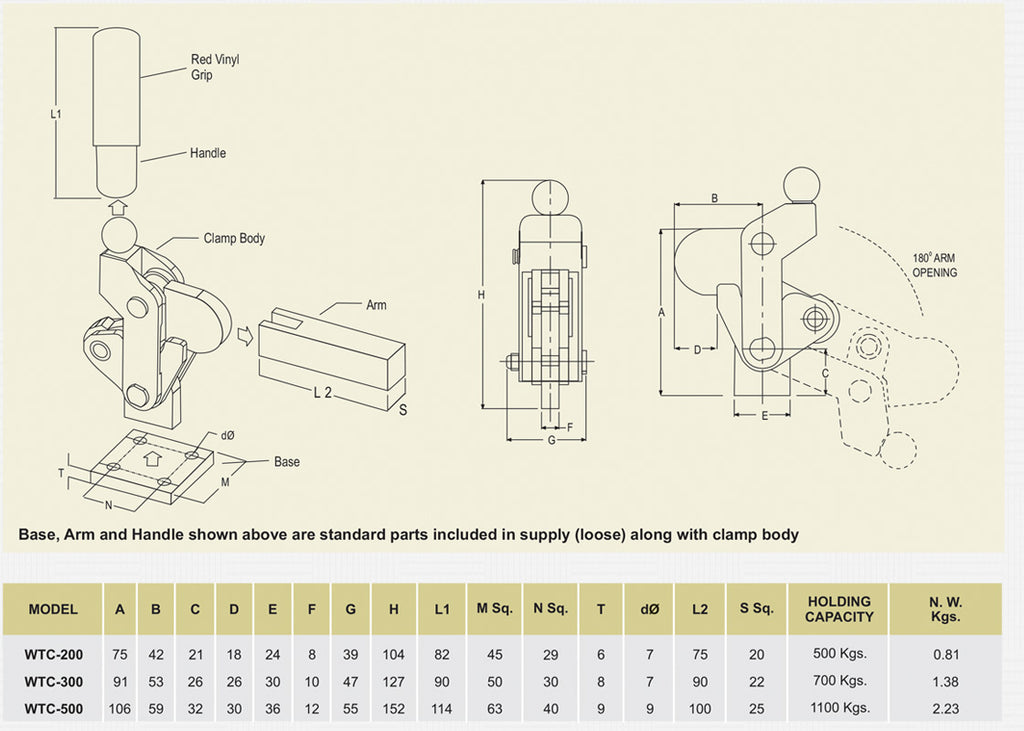

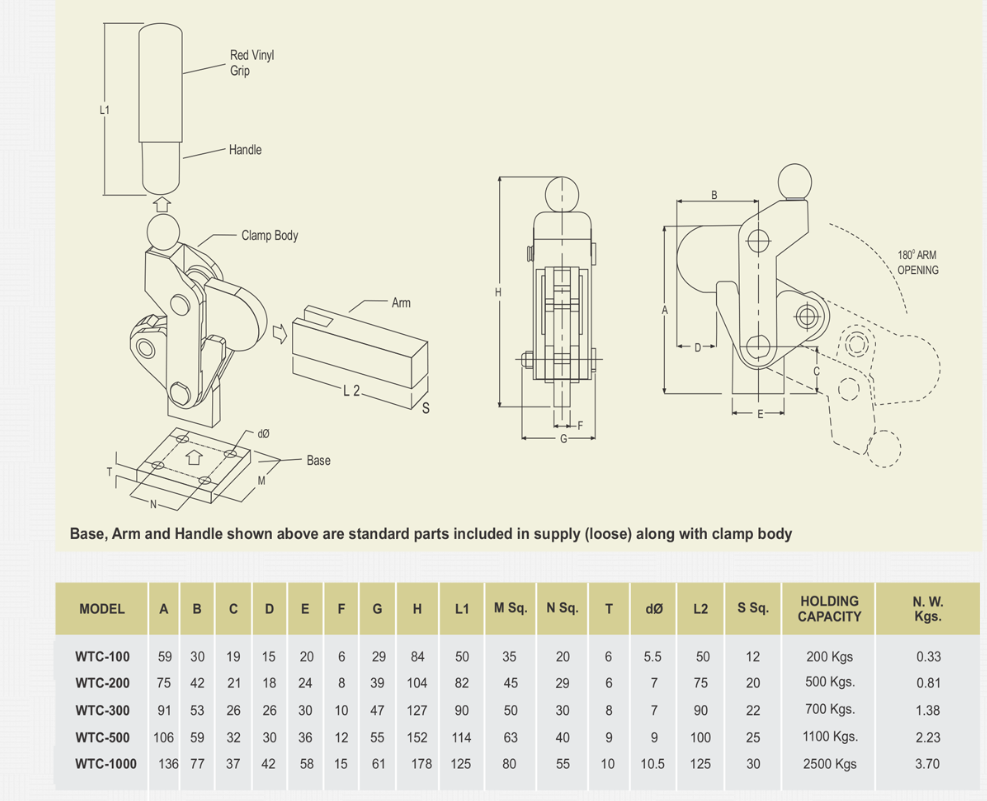

MODEL WTC-200 WTC-300 WTC-500
A 75 91 106
B 42 53 59
C 21 26 32
D 18 26 30
E 24 30 36
F 8 10 12
G 39 47 55
H 104 127 152
L1 82 90 114
M Sq. 45 50 63
N Sq. 29 30 40
T 6 8 9
7 7 9
L2 75 90 100
S Sq. 20 22 25
HOLDING CAPACITY
500 Kgs 700 Kgs 1100 Kgs
N.W. Kgs 0.81 1.38 2.23
