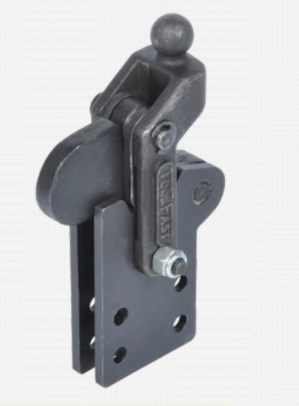

Heavy Duty Weldable Toggle Clamp - Modular Design - Base Straight

Save 27%

Variant: WTC-200-BS
Price:
Rs. 890 Rs. 1,219

Tax included Shipping calculated at checkout

Description

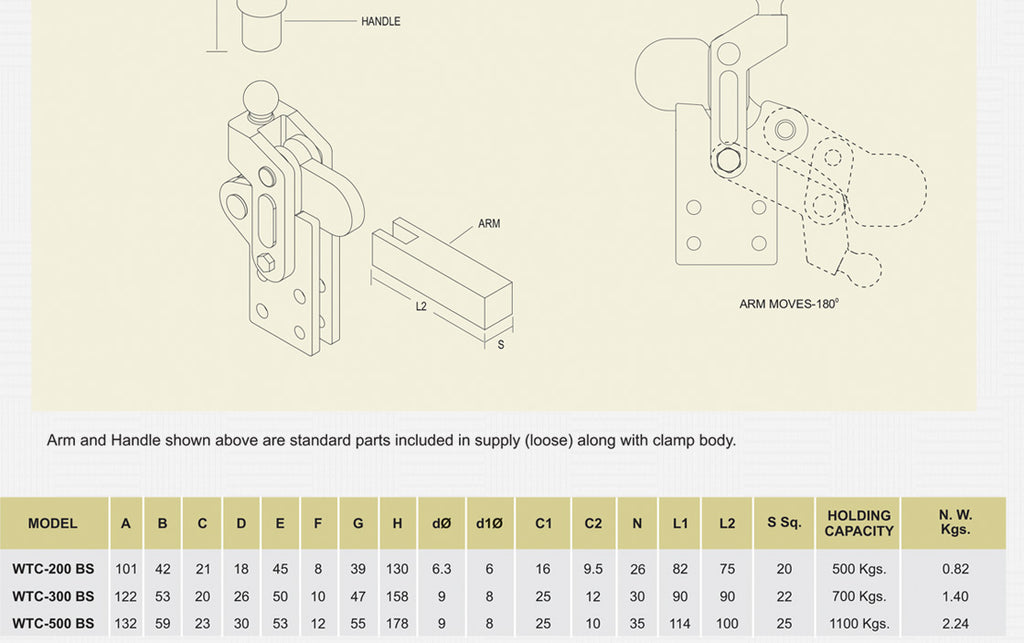

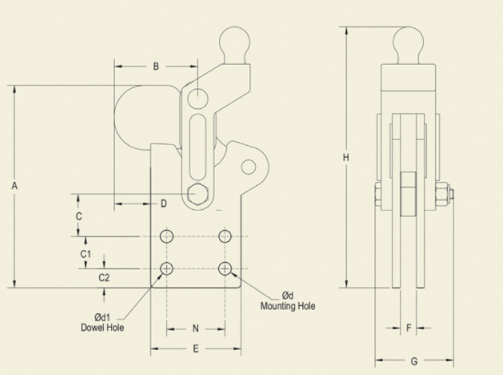

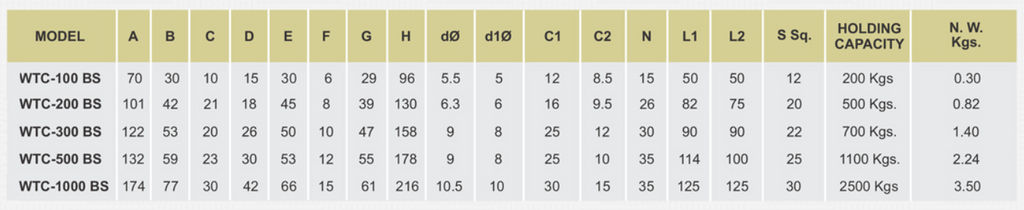

MODEL WTC-200 BS WTC-300-BS WTC-500-BS
A 101 122 132
B 42 53 59
C 21 20 23
D 18 26 30
E 45 50 53
F 8 10 12
G 39 47 55
H 130 158 178
6.3 9 9
D1Ø 6 8 8
C1 16 25 25
C2 9.5 12 10
N 26 30 35
L1 82 90 114
L2 75 90 100
S Sq. 20 22 25
HOLDING CAPACITY
500 Kgs 700 Kgs 1100 Kgs
N.W. Kgs 0.82 1.4 2.24
