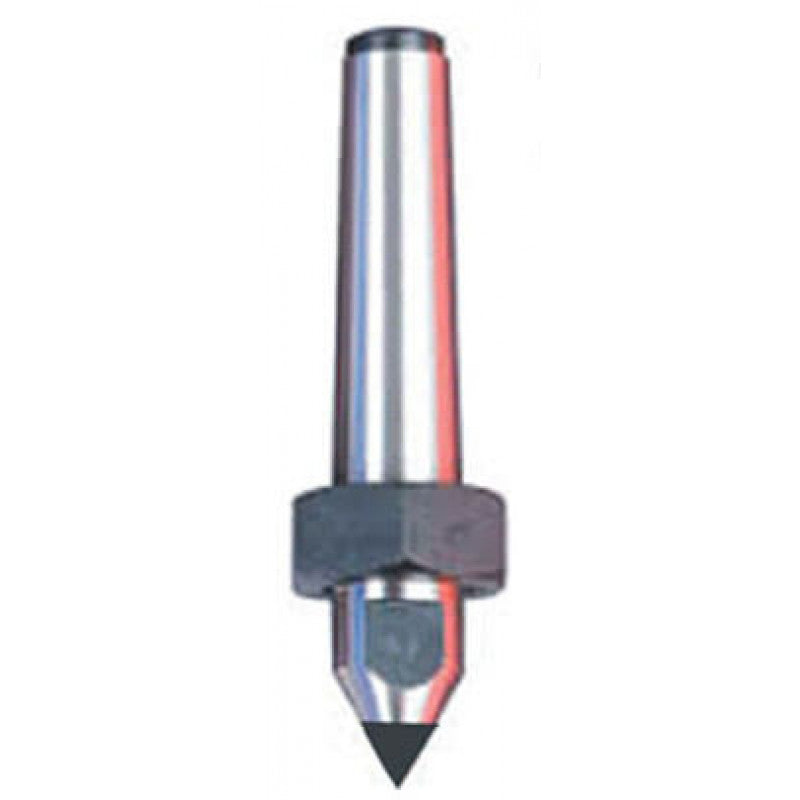

CNC Dead Center : Carbide Tipped (Stub - With Draw off Nut)

Save 40%

Shank Taper: MT-2
Price:
Rs. 1,560 Rs. 2,605

Tax included Shipping calculated at checkout

Description

  • TUNGSTEN CARBIDE TIPS BRAZED IN FRONT FOR HIGH WEAR RESISTANCE
  • SHANK MADE OF ALLOY STEEL APPROPRIATELY TOUGHENED
  • PRECISION GROUND. TIP RUNOUT WITHIN 0.015 MM w.r.t M. TAPER
  • BROADLY CONFIRMS TO DIN: 807
  • APPLICATION: ON CNC LATHERS WITH LIVE TAILSTOCK. DRAW OFF NUT TO BE USED TO REMOVE/EXTRACT THE DEAD CENTER FROM THE TAILSTOCK
  • STANDARD POINT ANGLE 60° (OTHERS ANGLES LIKE 75°/90° TEC. AGAINST REQUEST)



SPECIFICATIONS

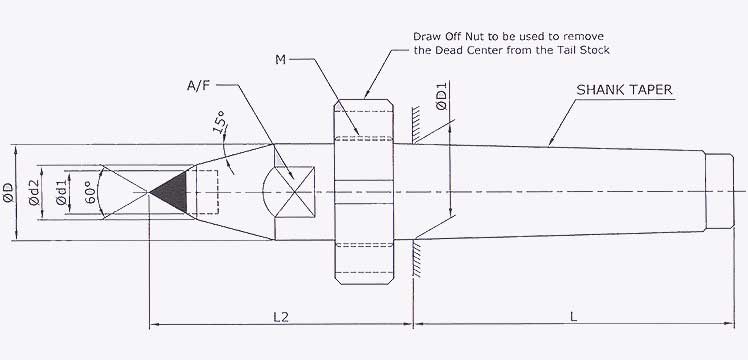

SHANK TAPER L mm L1 mm L 2 mm ∅D mm ∅D 1 mm ∅d mm C.T. ∅d 1 mm C.T. ∅ d 2 mm M (THREAD) A/F mm
MT - 2 64 48 52 18 17.78 8 8 11 M22 X 1.5 15
MT - 3 81 57 67 24.1 23.825 11 11 14 M27 X 1.5 21
MT - 4 102.5 72.5 83.5 31.6 31.267 14 11 14 M36 X 1.5 28
MT - 5 129.5 87.5 107 44.7 44.399 18 14 18 M48 X 1.5 40
MT - 6 182 108.5 145 63.8 63.348 18 18 22 M68 X 1.5 56
