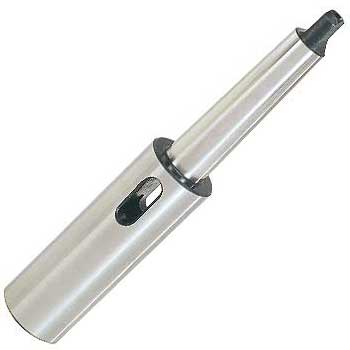

Extension Socket

Save 40%

Size: MT1-MT1
Price:
Rs. 722 Rs. 1,206

Tax included Shipping calculated at checkout

Description

  • MADE FROM 20MnCr5. CASE HARDENED TO 55-58HRc..
  • AS PER IS  : 6682 - 1972. (EQIVALENT TO DIN: 2187 & ISO : 1080 / 1969)
  • PRECISION GROUND INTERNALLY & EXTERNALLY
  • CONCENTRICITY WITHIN. 015 MM.

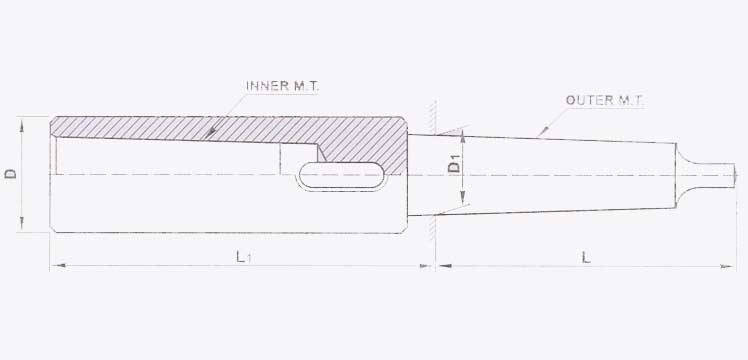

SPECIFICATIONS
MODEL No. MT OUTER M.T. INNER M.T. ∅ D mm ∅ D 1 mm L mm L1 mm WEIGHT Kg.
1-1 1 1 20 12.065 62 83 0.225
1-2 1 2 30 12.065 62 98 0.46
2-1 2 1 20 17.78 75 85 0.31
2-2 2 2 30 17.78 75 100 0.535
2-3 2 3 36 17.78 75 121 0.8
3-1 3 1 20 23.825 96 79 0.475
3-2 3 2 30 23.825 94 100 0.74
3-3 3 3 36 23.825 94 121 0.985
3-4 3 4 48 23.825 94 146 1.69
4-1 4 1 20 31.267 117.5 82.5 0.805
4-2 4 2 30 31.267 117.5 97.5 1.06
4-3 4 3 36 31.267 117.5 122.5 1.315
4-4 4 4 48 31.267 117.5 147.5 2.095
4-5 4 5 63 31.267 117.5 182.5 3.5
5-1 5 1 20 44.399 149.5 82.5 1.8
5-2 5 2 30 44.399 149.5 97.5 1.99
5-3 5 3 36 44.399 149.5 118.5 2.275
5-4 5 4 48 44.399 149.5 150.5 3.3
5-5 5 5 63 44.399 149.5 185.5 4.8
5-6 5 6 83 44.399 149.5 247.5 8.1
6-2 6 2 30 63.348 210 99 5.2
6-3 6 3 36 63.348 210 120 -
6-4 6 4 48 63.348 210 145 6.3
6-5 6 5 61 63.348 210 180 7.5
6-6 6 6 83 63.348 210 242 10.5
6-7 6 7 105 63.348 210 328 -
